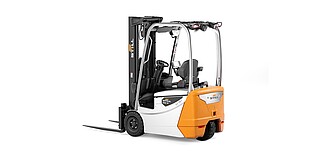

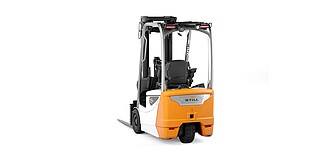

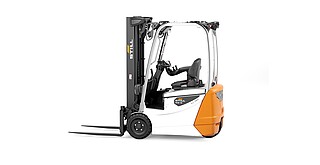

Electric forklift truck RXE 10 – 16C

Safety first: digital guided Pre-Shift Check

With the Pre-Shift Check in the on-board computer STILL Easy Control STILL achieves a new level of safety for the driver and the truck: before the start of each shift, or at user-defined intervals, the driver must confirm the operational capability of the truck via the on-board computer before he can put the truck into operation with all its functions.

The customer is free to choose the criteria of the safety check. In addition to the standard query, several individual queries can be stored in the display of the on-board computer. And if an answer is negative? The customer has all options.

For example, he can define in the system that the performance of the vehicle is automatically limited if a query shows a negative test result.

The visual warning system for fewer accidents

The blue warning light, STILL SafetyLight 4plus, significantly increases work safety in areas which are confusing or full of bends. The blue light spots are projected approx. 5 m in front of and behind the truck and warn people about the approaching truck to prevent impending collisions.

Perfect addition to the STILL SafetyLight

The STILL warning zone light projects two strips of light to the left and right of the forklift truck. The optional illumination equipment serves as a visual warning for pedestrians and other drivers in the vicinity by projecting luminescent strips on the hall floor at the sides of the forklift truck.

The STILL Warning Zone Light Plus projects a semi-circle around the rear of the truck. This also increases awareness of the truck and marks a typical danger zone when approaching. This reduces the risk of pedestrian injury.

The STILL Warning Zone Light and the STILL Warning Zone Light Plus therefore perfectly complement the STILL Safety Light, which projects a blue cone of light in the front of the truck in the direction of driving.

Keeping the goods in place: the load backrest stabilises the transported goods at the fork carriage back so that they can be securely transported from A to B.

Buckled up? If not, the seat belt control ensures that the driving speed is automatically reduced. In cab trucks, the system only engages when the cab door is open.

Access control perfectly integrated into the truck with different types of access authorisation for one or more trucks: with FleetManager 4.x you are free to choose the type of access authorisation for one or more trucks: chip, FleetManager card, your personal plant ID card or a PIN.

Thanks to the smart auto-logout function, the trucks are automatically deactivated after a freely selectable period of time – this also increases safety.

Automatic speed adjustment for curves

The speed limiter controlled by steering angle reduces possible damage to goods by adapting to an appropriate cornering speed. This assistance function is available for various forklift trucks and warehouse technology devices, and regulates the driving speed automatically according to the steering angle. In other words, the driver doesn’t need to worry about speed when cornering. The truck automatically decelerates precisely as much as necessary for the operator to drive as safely but as quickly as possible.

Lifting movements that adapt to the load? Stable idea!

Whether it's an inexperienced operator, careless movements or a particularly heavy load - there are various reasons for abrupt movements of the lifting hydraulics, which can quickly lead to goods breakage or even personal or vehicle damage. Dynamic Load Control brings calm to the mast. Feel how the assistance system makes load handling better and smoother. It detects the current load as well as the current lift height and automatically adjusts the speed of the lifting hydraulics before anything falters. In the second of two expansion stages, Dynamic Load Control also takes the load's center of gravity into account. In this way, it increases stability and prevents the vehicle from tipping forward - even with small weights and large load centers. The graphic stability index also shows you at a glance how stable the vehicle is on the ground with the current load and lifting height.

Fulfills lifting height requirements at the push of a button:

Whether the racks are to be filled or emptied - you know the game: look closely, extend the mast, maintain concentrated eye contact, stop the mast, readjust if necessary. Several times. In every shift. On every day. Now imagine that you could leave your sense of proportion behind. Imagine you could just press a button and wait for the forks to float to exactly the right height and stop there automatically. Imagine: You can. With the STILL lift limiter, the forks automatically stop at up to three programmable intermediate lift heights. And to ensure that your profitability, but not your trucks, goes through the roof, the maximum lift height can also be permanently programmed.

Seeing instead of estimating

With the help of the LED lift height sensor installed as standard, the lift height display ensures maximum precision from the first millimeter. This means that operators always know the height of the fork tips and can navigate precisely to avoid touching the rack when picking up the pallet. The system works with a repeatability of less than +/- 5 mm and the lift height is permanently shown to the drivers on the display.

Autostop before ground contact:

When forks hit the ground, it's not pleasant for the ears, the floor or the forklift. But on the other hand, would it not be very pleasant if this would not happen in the first place? That's exactly why we developed the electric fork wear protection for you. When the assistance system is activated, it ensures that the forks cannot touch the ground during lowering. Shortly before that, they stop automatically - exactly so that you can thread them perfectly into the pallet. Forks dragging on the ground due to accidental startup in the lowered state are also a thing of the past.

Quiet lifting!

Strength lies in peace - this now also applies to your forklift trucks. Because the Silent Lift assistance system puts an end to noise during lifting and lowering operations. Smooth lift transitions, smooth storage and retrieval on the top shelf level, and an automatic stop of the forks before they hit the floor - all this promises you heavenly peace and quiet even when lifting and lowering the heaviest loads.

Forks up, speed down:

More safety, less product breakage and ensuring proper vehicle use - these are the benefits offered by the Speed Reduction assistance system when the fork carriage is raised. As soon as the forks reach a height of 500 mm (or another defined threshold), the speed of the vehicle is automatically reduced. Even if a driver forgets that he should not drive with the load raised, the assistance system slows him down, guaranteeing safe handling of the load and vehicle.
