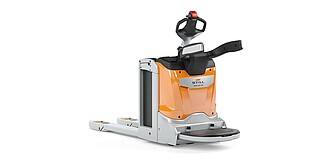

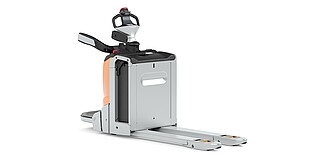

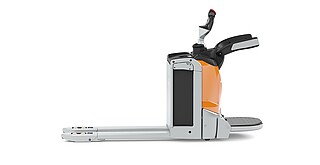

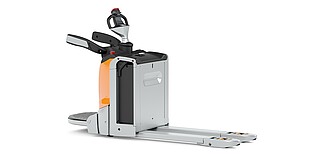

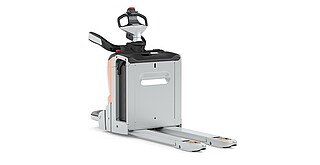

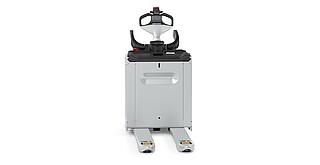

Low Lift Pallet Truck EXH-SF 16C-20C
Lightens the load
- Load capacity 2000 kg
- Rated lift 125 mm
- Speed 8.5 km/h
Manoeuvrability and intuitive operation taken to a new dimension – the EXH-SF 16C/20C low lift pallet truck with folding stand-on platform is the smart assistant for light to medium duty horizontal transport operations. With its impressively slim dimensions, the pallet truck is very easy to manoeuvre when loading and unloading HGVs and can be operated with precision thanks to the electric steering and the innovative STILL tiller. The innovative STILL LED or touch display integrated in the tiller head provides even more working ergonomics and an excellent overview of all relevant truck data.
For maximum safety and increased handling performance at the same time, the EXH-SF 16C/20C features the STILL Curve Speed Control driver assistance system as standard, which automatically adjusts the speed when cornering. Sturdy side bars and a generously dimensioned sprung stand-on platform ensure safety and comfort during operation.The innovative STILL lithium-ion technology enables fast charging and interim charging of the battery during breaks, which ensures maximum availability of the smart warehouse assistant. In addition, different battery sizes are available to suit your individual requirements.
Request to: EXH-SF 16C-20C
Please fill out the form below. We will get back to you as soon as possible.
The "Simply Efficent" factors: Performance attributes as a measure of economic efficiency
Simply easy
Easy access and optimal protection for the operator’s back and joints:
low access point and mechanically suspended stand-on platform
Optional built-in charger
for decentralised charging at any power socket
Optimal utilisation of storage space:
compact dimensions and high manoeuvrability facilitate narrow working aisles
A high level of comfort and excellent driving on any surface:
the stand-on platform is mechanically suspended
Simply powerful
Built for continuous operation:
reliable and low-maintenance drive
Swift, safe movement on ramps:
high-powered drive and lift motor and 5-wheel chassis with sprung support wheels
Instant charging:
lithium-ion model achieves 50 percent charge level in only 30 minutes and is fully charged in only 90 minutes
Designed to handle even the toughest applications:
robust, durable chassis made from solid steel
Simply safe
Simply work with precision
thanks to unobstructed field of vision: good view of the fork tips and centrally mounted tiller
Accidental roll-back impossible:
automatic stop function even on ramps
Fast and safe cornering:
Curve Speed Control automatically adapts speed to the steering angle when cornering
Safe load handling in confined spaces
thanks to compact dimensions
Simply flexible
Suitable driving programmes for any application,
from maximum handling power to optimal efficiency: ECO, BOOST or Blue-Q
Ready for use at all times:
battery capacities up to 500 Ah and optional STILL lithium-ion battery for round-the-clock availability
Decentralised and flexible chargingat any power socket
with the optional built-in charger
Flexibly configurable driver’s cab
for various main applications, from frequent ramp driving through to long transport distances: rear access, side access
Simply connected
Versatile, flexible access control
with FleetManager 4.x
Fast service analysis and parametrisation of settings
thanks to CAN bus interface
Easy integration into material flow management system
thanks to MMS provision
STILL Li-Ion Technology inside
The perfectly harmonised power system for reducing operating costs and increased truck availability.
More about STILL Li-Ion Technology
Request to: EXH-SF 16C-20C
Please fill out the form below. We will get back to you as soon as possible.
Forklift driver assistance systems
Sharpening all senses: we can support you with our wide range of smart driver assistance systems and functions which will make your day-to-day work significantly easier. You will be able to drive in a safer, more comfortable, efficient and fatigue-free manner – in every driving situation.
The visual warning system for fewer accidents
The blue warning light, STILL SafetyLight 4plus, significantly increases work safety in areas which are confusing or full of bends. The blue light spots are projected approx. 5 m in front of and behind the truck and warn people about the approaching truck to prevent impending collisions.
Learn more
Access control perfectly integrated into the truck with different types of access authorisation for one or more trucks: with FleetManager 4.x you are free to choose the type of access authorisation for one or more trucks: chip, FleetManager card, your personal plant ID card or a PIN.
Thanks to the smart auto-logout function, the trucks are automatically deactivated after a freely selectable period of time – this also increases safety.
Digicode systems (PIN) are an easy way to prevent unauthorised use of the truck. The truck can be started up quickly and easily, simply by entering the PIN code. This allows the user to limit access authorisation to specific individuals or groups. It is possible to configure up to ten PIN codes.
More informationAutomatic speed adjustment for curves
The speed limiter controlled by steering angle reduces possible damage to goods by adapting to an appropriate cornering speed. This assistance function is available for various forklift trucks and warehouse technology devices, and regulates the driving speed automatically according to the steering angle. In other words, the driver doesn’t need to worry about speed when cornering. The truck automatically decelerates precisely as much as necessary for the operator to drive as safely but as quickly as possible.
Learn more
| Model | Maximum capacity (kg) | Maximum lift height (mm) | Travel speed (km/h) | Battery voltage (V) |
|---|---|---|---|---|
| EXH-SF 16C / Li-Ion | 1.600 | 125 | 8.5 | 24 |
| EXH-SF 20C / Li-Ion | 2.000 | 125 | 8.5 | 24 |
Downloads
The document provided for download is the updated version of the operating instructions for the standard truck. It does not include descriptions of customer options (Customer Option). For a concrete truck, please request the respective specific manual according to the serial number and the year of production from the STILL spare parts service.
